Braking resistors

The braking resistors serve to dissipate the large amounts of energy produced during the braking of the electric motor. They are available in different sizes and are combined with our drives in all those applications where the resistance inside the converter is too small and it is not possible to recover the energy network.

Braking resistors

Caratteristiche tecniche

  • Ideal for repetitive use
  • Low inductance element
  • Degree of protection: IP20
  • There are 4 models available: RES32R1KW5 (32 ohm - 1 Kw), RES20R900W10 (20 ohm - 900 w), RES8R4KW5 (8 ohm - 4 Kw), RES3R38KW10 (3.3 ohm - 8 Kw).

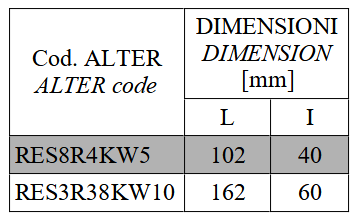

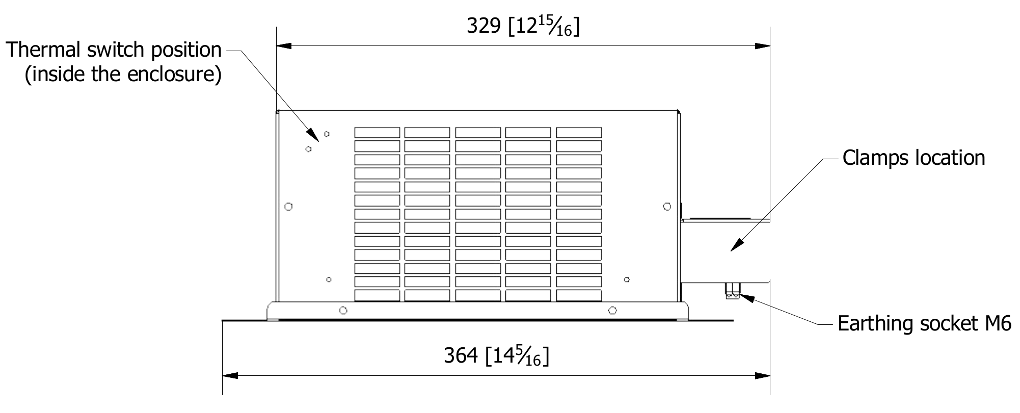

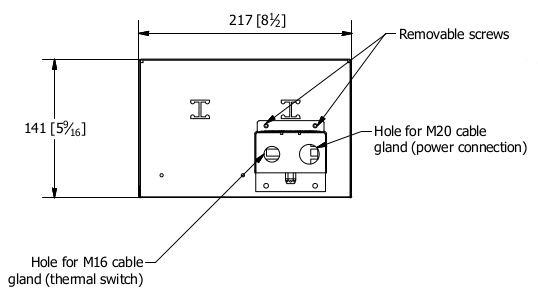

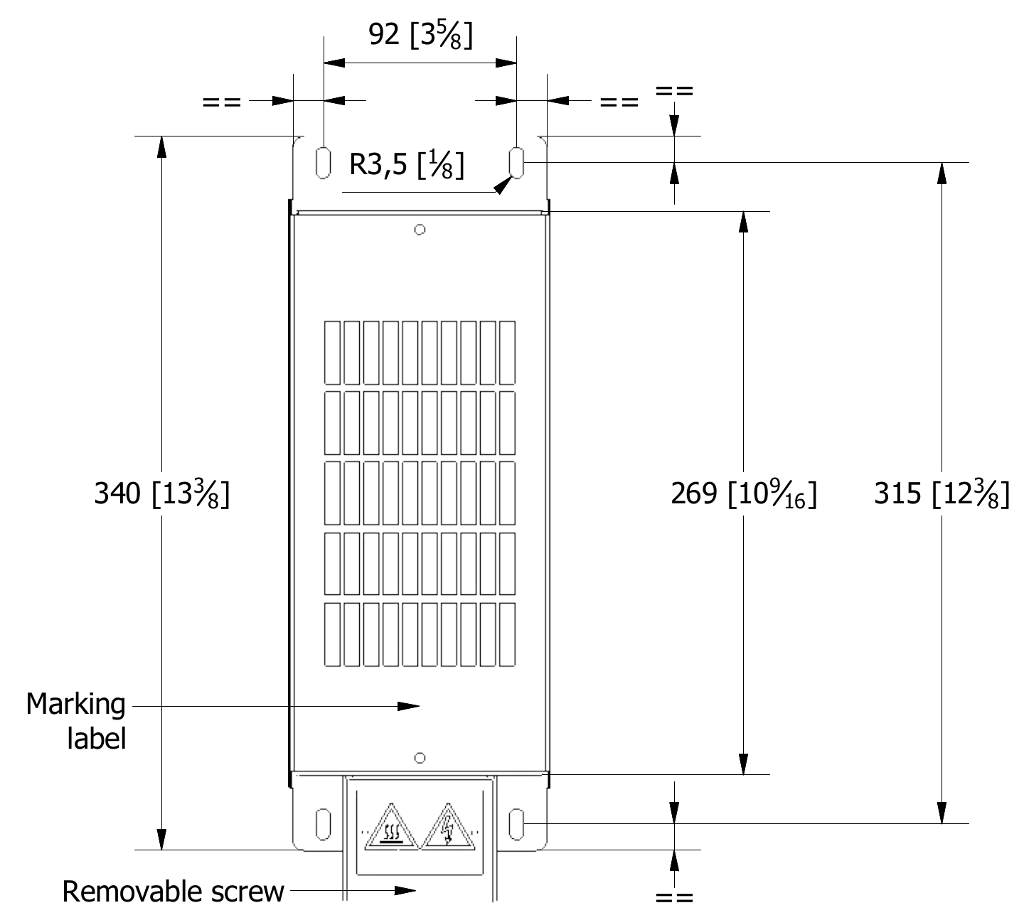

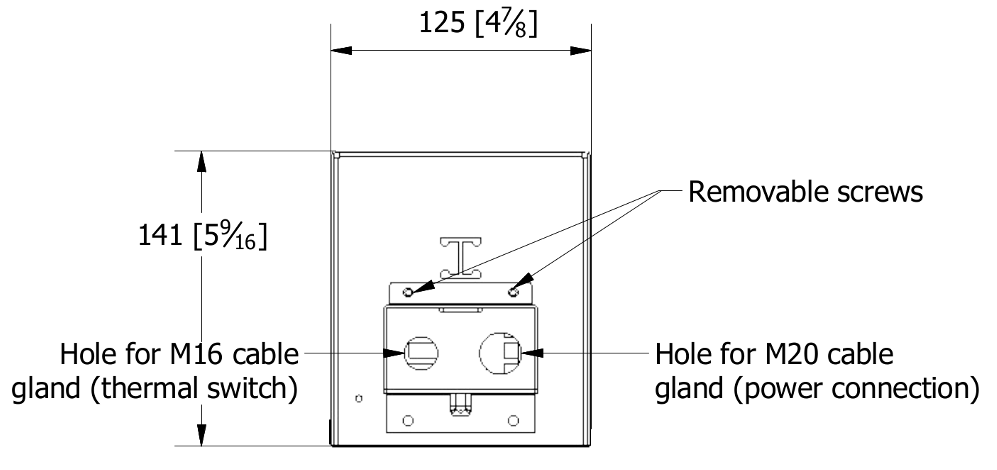

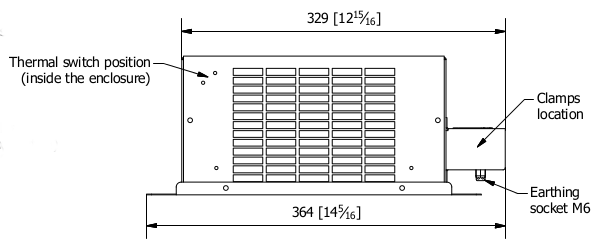

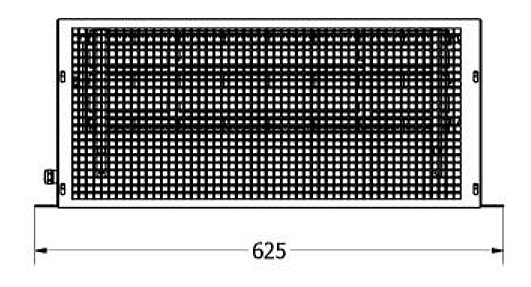

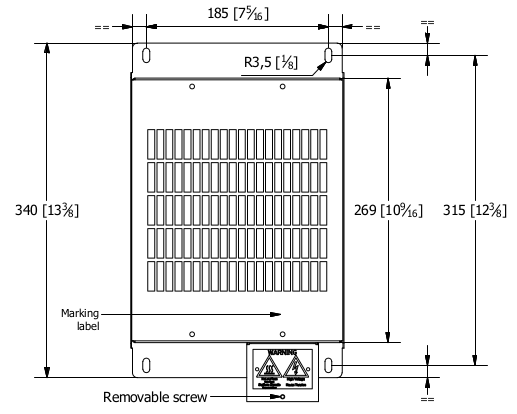

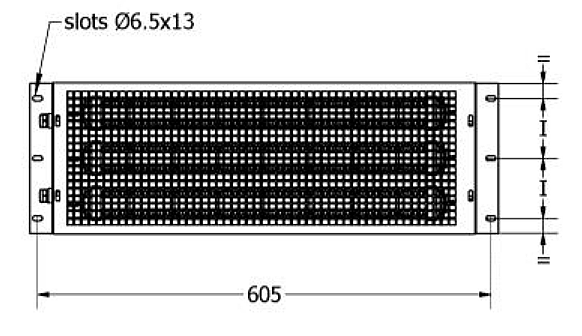

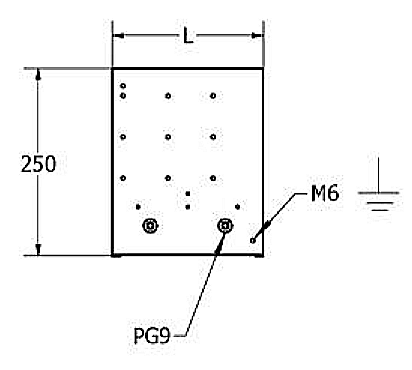

External dimensions

The above data are not binding and may be changed without notice.
